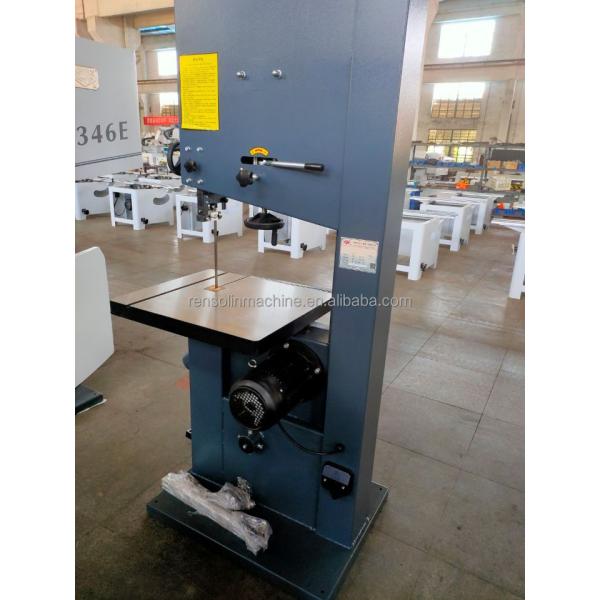

720rpm Band Precision Panel Saw Machine Vertical Sawmill 3500mm

Name: 720rpm Band Precision Panel Saw Machine Vertical Sawmill 3500mm
Brand: Rensolin
Price: 500.00 USD

China 720rpm Band Precision Panel Saw Machine Vertical Sawmill 3500mm wholesale

Place of Origin : China

Brand Name : Rensolin

Packaging Details : Wrapped film or wooden box

Supply Ability : 300Sets/Month

Price : $500.00 - $2,000.00/sets

Certification : CE,ISO

MOQ : 1Set

Delivery Time : 5-7days

Payment Terms : T/T

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining

Marketing Type : New Product

Machinery Test Report : Provided

Warranty of core components : 2 Year

Core Components : Motor

Port : Qingdao,China

Contact Now

Wood Cutting Band Saw Machine Vertical Cutting Sawmill for 3500mm Max.Working Width

720rpm Band Precision Panel Saw Machine Vertical Sawmill 3500mm

Products Description

This type of band saw is the most common machine for cutting materials before furniture manufacturing and wood line processing.

It's characterized by small sawing roads, flat sawing surface, and flat sawing with very little margin, effectively reducing the movement of precious wood.

Product Paramenters

Model	MJ345	MJ346
Band saw diameter	470mm	600mm
Wheel speed	720 rpm	720 rpm
Band saw blade length	3500mm	4080mm
working desk size	630*650mm	580*680mm
The motor power	1.5kw	3kw
Saw blade width	10mm-25mm	10mm-25mm
Saw blade thickness	0.65-0.9mm	0.65-0.9mm

product advantages

The Installation and adjust

①Installation of the machine tool: The workbench should be kept level during installation, the surrounding pads should be solid
and there is no gap between the ground, and the anchor screws should be installed. Wire according to the requirements of the
motor. This machine uses a three-phase 380V AC power supply, which must be safely grounded.
②The adjustment of the machine tool: mainly adjust the position of the band saw blade, the saw teeth should just protrude from the
edge of the wheel; if the saw blade will run out or run in, you can loosen the movable gear sleeve on the handwheel shaft to
adjust the rear carriage High or low, the aluminum sheet will also follow the positive position, and then press into the gear
sleeve. At this time, the two carriages of the handwheel will be raised or lowered at the same time. The adjustment is completed
by raising the saw blade and adding the balance iron.
③Trial run: After adjusting the band saw blade, try to start, see if the direction of rotation is consistent with the
requirements, see if there is any looseness or abnormal noise, and then start the operation after everything is normal.

SERVICE

PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
